What Is This Strategy?

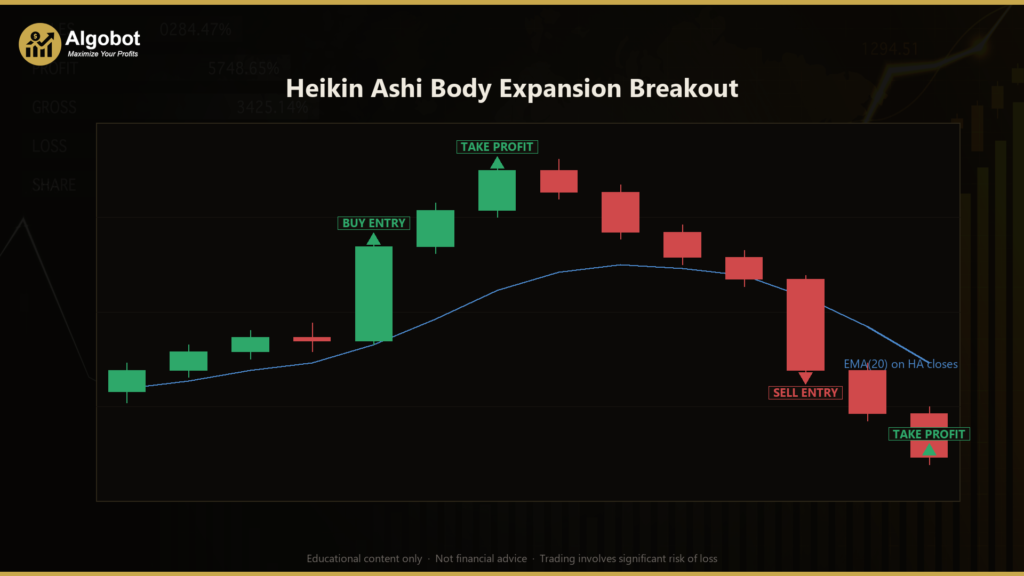

The Heikin Ashi Body Expansion Breakout is a trend-momentum strategy built around Heikin Ashi candles — a smoothed candlestick format that averages price data to filter out much of the noise found in raw Japanese candlesticks. Instead of trying to catch reversals, this strategy is designed to detect the moment momentum ignites inside an existing trend, when a single Heikin Ashi candle suddenly prints a body far larger than its recent average while keeping a "flat" side against the direction of the move.
Heikin Ashi (Japanese for "average bar") calculations blend the open, high, low, and close of each bar so that consecutive candles flow into one another. In a healthy trend, these smoothed bodies stay a fairly steady size. When a genuine burst of momentum arrives, one body expands dramatically. This strategy treats that expansion candle as a breakout ignition signal — but only when it fires in the same direction as an EMA-filtered trend. That combination of a smoothing indicator, an expansion filter, and a trend filter is what defines its trading style: momentum continuation rather than mean reversion.
As a learning tool, this strategy is well suited to traders who want to study how trend-following and momentum-breakout logic can be layered together. It is intended for use on trending instruments such as forex majors, gold, or major indices on intraday timeframes. It is best viewed as a framework for understanding how objective candle measurements can be turned into rule-based entries — not as a shortcut to any particular outcome.
How It Works
The strategy evaluates conditions only on closed bars, because Heikin Ashi candles repaint while a bar is still forming. Acting on unfinished candles would produce false signals, so every calculation waits for a bar to close before it runs. Here is how the logic flows:
- Heikin Ashi construction: For each bar, the strategy computes the smoothed close as
(Open + High + Low + Close) / 4and the smoothed open as the average of the previous Heikin Ashi open and close. Highs and lows are adjusted accordingly. These candles come from the primary chart timeframe only. - Trend filter (EMA): An Exponential Moving Average (EMA) — a moving average that weights recent prices more heavily — is calculated over the Heikin Ashi closes. The strategy identifies an up-trend when the Heikin Ashi close is above a rising EMA, and a down-trend when it is below a falling EMA. Requiring the EMA slope to agree keeps entries aligned with momentum.
- Ignition (body expansion): The strategy measures the body size of the just-closed Heikin Ashi candle and compares it to the average body over the prior lookback candles. If the current body is at least
ExpandMulttimes that average, the candle qualifies as an ignition candle. - Flat-side confirmation: A long signal additionally requires a bullish flat-bottom candle — one whose lower wick is a small fraction of its total range, indicating little pullback against the move. A short signal requires a bearish flat-top candle, with a small upper wick.

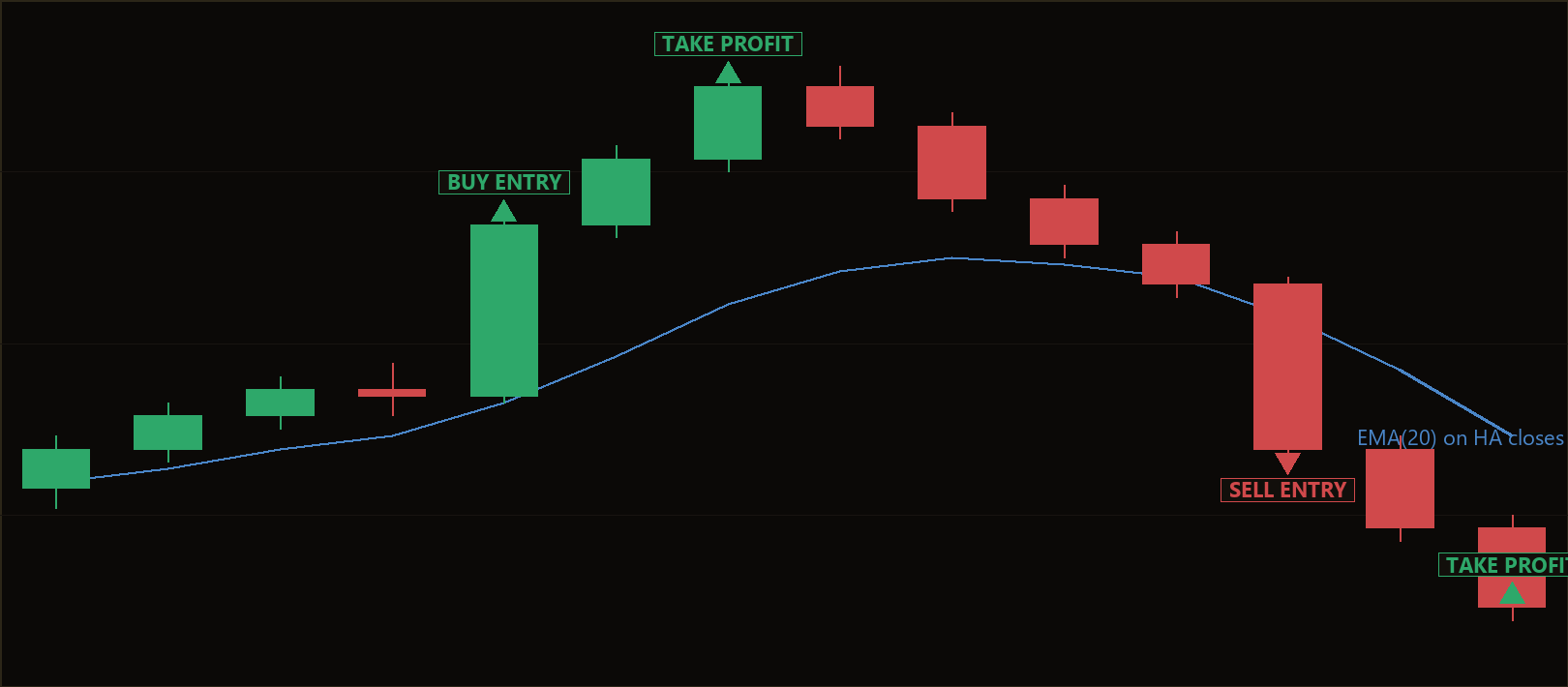

- Long entry: The strategy signals a buy when there is an up-trend and a bullish flat-bottom ignition candle.
- Short entry: The strategy signals a sell when there is a down-trend and a bearish flat-top ignition candle.
- Stop-loss: The stop is placed beyond the ignition candle's Heikin Ashi extreme, offset by a multiple of the ATR (Average True Range) — a volatility indicator. For longs the stop sits below the candle low; for shorts, above the candle high.
- Take-profit: The target is set at a fixed reward-to-risk multiple of the measured stop distance, so every trade carries a defined R (risk unit).
- Trend exit (optional): When enabled, an open position is closed early the moment the Heikin Ashi colour flips against it, aiming to lock in trend gains before the stop is reached.
- Spread guard: Entries are skipped when the current spread exceeds the configured maximum, and only one position per magic number is held at a time.

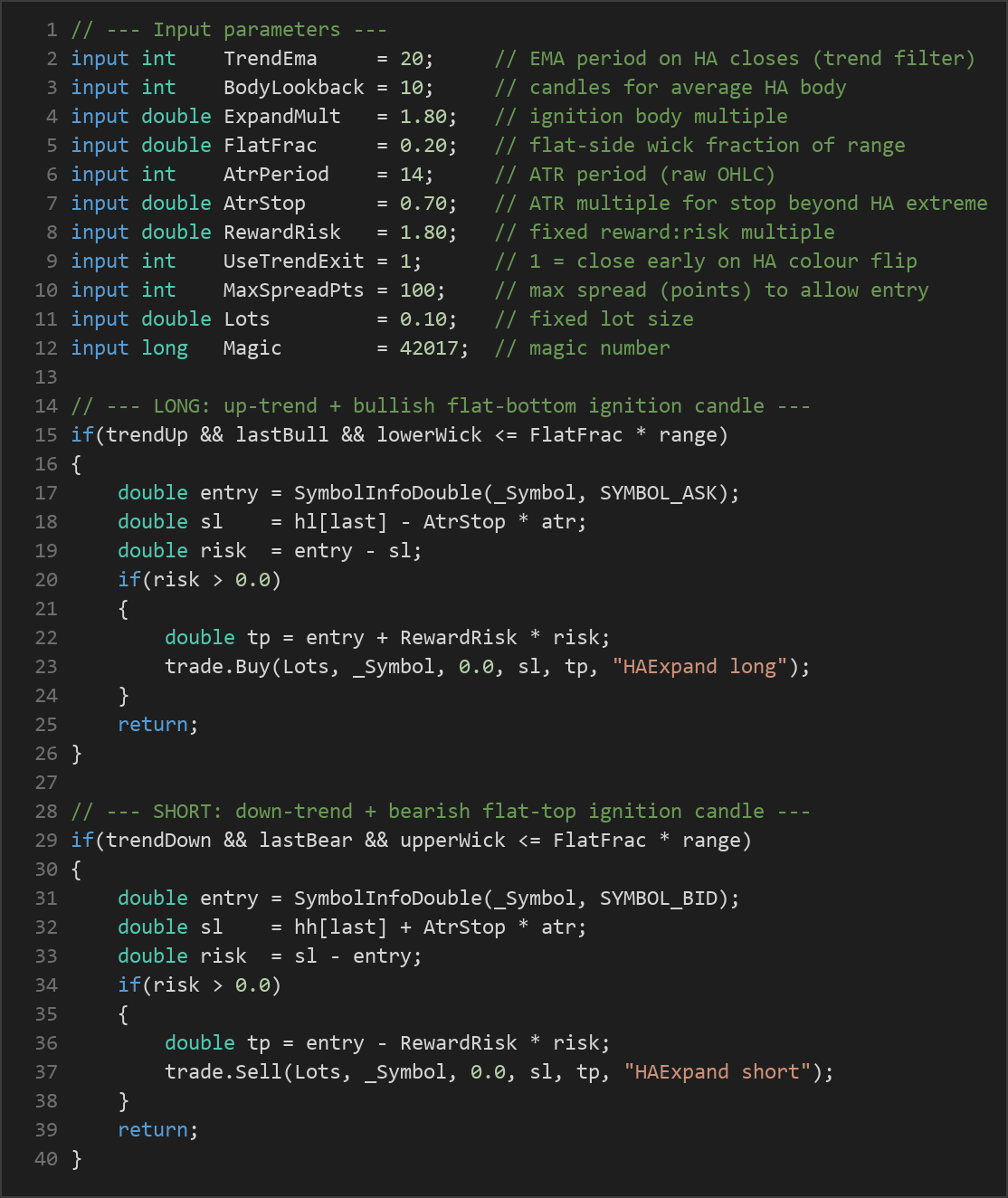

Strategy Parameters
| Parameter | Default | Min | Max | Description |
|---|---|---|---|---|
| TrendEma | 20 | 5 | 100 | EMA period applied to Heikin Ashi closes for the trend filter. |
| BodyLookback | 10 | 3 | 40 | Number of prior candles used to compute the average Heikin Ashi body size. |
| ExpandMult | 1.80 | 1.10 | 4.00 | Multiple of the average body the current body must reach to qualify as an ignition candle. |
| FlatFrac | 0.20 | 0.02 | 0.60 | Maximum wick size, as a fraction of candle range, for the "flat" trend side. |
| AtrPeriod | 14 | 5 | 50 | ATR period used to size the stop-loss offset. |
| AtrStop | 0.70 | 0.10 | 3.00 | ATR multiple placed beyond the ignition candle's extreme for the stop. |
| RewardRisk | 1.80 | 0.50 | 5.00 | Fixed reward-to-risk multiple that sets the take-profit distance. |
| UseTrendExit | 1 | 0 | 1 | 1 = close a trade early when the Heikin Ashi colour flips against it; 0 = disabled. |
| MaxSpreadPts | 100 | 5 | 400 | Maximum spread, in points, allowed for a new entry. |
| Lots | 0.10 | 0.01 | 1.00 | Fixed trade volume in lots. |
| Magic | 42017 | 0 | 9,999,999 | Magic number used to identify and manage this EA's positions. |
Recommended Chart Settings
This strategy was designed with trending forex majors, gold, or major indices in mind, on the M15 or H1 timeframe. These intraday timeframes tend to produce enough clean trending sequences for the body-expansion logic to work with, while still smoothing away much of the tick-level noise through the Heikin Ashi calculation.
Because the strategy is single-timeframe compliant, it simply runs on whatever timeframe the chart or backtest selects. That said, results will vary considerably across different symbols, sessions, and market regimes. A setting that behaves one way on gold during a trending week may behave very differently on a ranging currency pair. Always test on the specific instrument and timeframe you intend to study before drawing conclusions.
How to Install on MetaTrader 5
- Download the .ex5 file from the link below
- Copy it to your MT5
MQL5\Expertsfolder - Restart MetaTrader 5 or refresh the Navigator panel
- Drag the EA onto a chart matching the recommended symbol and timeframe
- Configure the input parameters and enable Algo Trading
What to Consider Before Using This EA
Every strategy has trade-offs, and understanding them is part of using any tool responsibly.
Strengths of the approach. The Heikin Ashi smoothing genuinely reduces candle noise, which can make trend structure easier to read and measure objectively. Layering a trend filter, a body-expansion filter, and a flat-side check means the strategy demands several conditions to align before it acts, which historically tends to reduce the number of low-quality signals. The defined ATR-based stop and fixed reward-to-risk target give every trade a measurable risk unit, and the optional trend exit adds a mechanism for leaving a move when momentum visibly fades.
Known limitations. Heikin Ashi candles are derived, averaged values — they are not the true traded price, so entries and exits occur at raw market prices that can differ from what the smoothed candles suggest. In choppy or ranging markets, the trend filter can whipsaw, generating ignition signals that quickly reverse. The strategy also only ever holds one position per magic number, so it will sit out additional opportunities while a trade is open. Fixed lot sizing does not scale risk to account equity, and a fixed reward-to-risk target may cut winners short during unusually strong trends.
Where it may underperform. Low-volatility, sideways, or news-driven erratic conditions are the toughest environments for a momentum-continuation approach like this. In quiet regimes, raising the ExpandMult value so that only genuine bursts qualify may help filter weak signals — but no parameter set removes the underlying reality that breakout strategies can produce strings of losing trades during range-bound periods. Treat this EA as a study of momentum-continuation logic, not as a set-and-forget solution.
Risk Management Tips
Sound risk management matters far more than any single entry rule. Consider the following general principles as you study this or any strategy:
- Risk a small, fixed percentage. Many educational sources suggest risking no more than 1–2% of account equity per trade. Because this EA uses a fixed lot size, you should calculate whether that lot size aligns with your intended risk on your specific account and instrument.
- Understand your drawdown. A series of losing trades is a normal part of any strategy. Study the maximum peak-to-trough decline you could tolerate emotionally and financially before committing real capital.
- Start on a demo account. Run the strategy on a demo account first to observe how it behaves across different market conditions without financial exposure. This is the safest way to learn its tendencies.
- Size positions deliberately. Match your lot size to your account balance and risk tolerance rather than using a default value out of convenience.
- Review, don't automate blindly. Even an automated strategy benefits from periodic human review of its trades, its assumptions, and the market environment it is operating in.
Risk Warning
Trading foreign exchange, CFDs, and other leveraged financial instruments involves substantial risk of loss and is not suitable for all investors. The strategies and tools discussed on this page are provided for educational purposes only and do not constitute financial advice, investment recommendations, or solicitation to trade. Always consult a qualified financial adviser before making trading decisions. Past backtest performance is not indicative of future results.
Downloads
- Expert Advisor: HeikinAshiBodyExpansionBreakout.ex5 (0 downloads)
- Source Code: HeikinAshiBodyExpansionBreakout.mq5 (0 downloads)
- Documentation: HeikinAshiBodyExpansionBreakout.pdf (0 downloads)
